Freestanding Jib Crane

SUMMARY OF FEATURES

  • Capacities from 500 to 10,000 lbs
  • Standard length up to 20 ft
  • High grade steel components for long life
  • Jib cranes with up to 360 degree rotation
  • Primed and painted safety yellow
Category:

Description

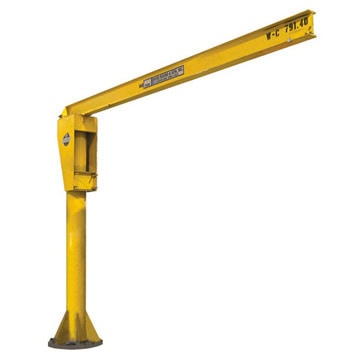

FREESTANDING JIB CRANE

David Round’s heavy duty, floor mounted, freestanding jib cranes are designed and constructed for industrial use with years of trouble free service. The crane boom is fabricated out of a steel “S” or “W” shaped I beam and has removable end stops. A machined lower roller carriage is housed in the jib crane head section that feature heavy steel side plates. The lower roller carriage is mounted on adjustable tension bolts to allow for field adjustments. The support column for the freestanding jib crane is constructed out of steel pipe with a heavy base plate and reinforcing gussets. These freestanding jib cranes are designed for indoor use, and can be custom-modified for most outdoor applications.

ADDITIONAL FEATURES

  • Ideal for maximum headroom and trolley travel
  • Mount at any height on wall or building columns where strength permits and true vertical alignment is possible
  • Hinges with self-lubricating Teflon bearings and hardened pins
  • Cantilevered or over braced tiered styles available

OPTIONAL FEATURES

FLOOR BASE PLATE MOUNTED JIB CRANE

With this type of mounting the freestanding jib crane column assembly is bolted to a pre-poured concrete foundation with embedded anchor bolts. Floor Base Plate Mounted Jib Cranes allow 360-degree rotation of the boom, with under clearance up to 20′-0″ and standard boom lengths up to 20′-0″.

FOUNDATION MOUNTED JIB CRANE

This method of mounting bolts the freestanding jib crane column to a pre-poured concrete footer. Once the jib crane is plumbed and secured to the footer a second concrete pour finishes the jib crane foundation and embeds the freestanding jib crane column in the foundation. The remainder of the jib is the same as the base plate mount jib crane.

SLEEVE MOUNTED JIB CRANE

A sleeve mounted freestanding jib crane is similar to the Foundation Mount. Instead of the jib crane column however, a steel sleeve is anchored to the concrete footer and embedded in the concrete foundation. The freestanding jib crane column is then inserted into the sleeve, plumbed, and held in place with a set of split collars that are welded to the column and the embedded sleeve.

We have a large line of floor mounted jib cranes with capacities from 500 lb. to 10,000 lb. Standard boom lengths and clearance below the boom range from 8′-0″ to 20′-0″. We can customize any of our freestanding jib crane products to better fit your lifting needs.
